COLOURS: Trans Brown & Trans Green
TOP TUBE LENGTH: 20.75” (Trns Brn) & 20.5" (Trns Grn)
FRAME: Cromo Top Tube , Removeable brake mounts, integrated head tube, mid bb, CNC seat stay bridge embossed logo down tube gusset
GEOMETRY: HT: 75° / CS: 13.25” / SO: 8.25” / BB: 11.8” / ST: 71°
FORKS: Cromo Steerer tube, integrated bearing race, tapered 1020 hi tensile steel legs
BARS: 9” x 28.5” 1020 hi tensile steel with larger radius bends, 2.5° up sweep, 11° back sweep
GRIPS: United Team Grips & United Bar Ends
HEADSET: United integrated sealed bearing
STEM: United 50mm reach top load stem with embossed United logo on faceplate and forged detailing on sides
REAR LEVER: Alloy
REAR BRAKE: 990
CRANKS: 3pc 170mm, tubular cromo, 8 spline, printed United logo
BB: United sealed bearing mid
SPROCKET: 25t Steel
PEDALS: United Supreme PC
CHAIN: x410
REAR RIM: Alloy 36h, single wall
FRONT RIM: Alloy 36h, single wall
REAR HUB: 36h United Supreme sealed alloy cassette hub with 14mm axle, sealed bearing 9t driver, 4 pawl, ultra loud mechanism
FRONT HUB: 36h alloy, sealed bearing, Female Axle 10mm axle
REAR TYRE: United Direct 20 x 2.3”
FRONT TYRE: United Direct 20 x 2.3”

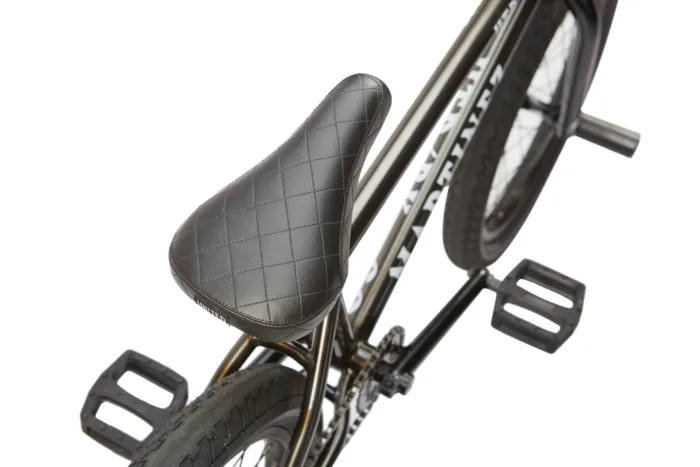

SEAT: United Padded Seat/Post Combo with custom sewn patch on rear
SEAT POST: Integrated with seat
SEAT CLAMP: Alloy
