PRODUCTIVITY - ECLAT EXILE HUB RANGE

Something for everyone!

17 Oct 2023

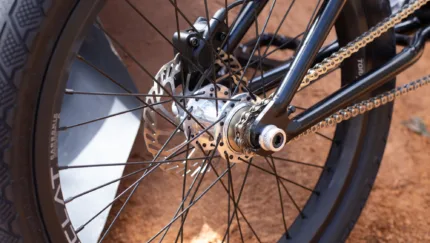

IMG 1085
eclat

Photos courtesy of eclat

Whether you like to rip through transition in the woods or the parks, eclat has created a hub set just for you. Made from a super lightweight 7075-T6 alloy with a 6 pawl multi-tooth driver with 120 points of engagement, this bad boy is fast as hell. And don't worry, you're not just limited to the transitions, you can also throw on some pegs thanks to the additional 17mm hex bolts supplied with the hub. Scroll down for more, including a disc-brake version!

https://shop.digbmx.com/collections/all-clothing

EXILE FRONT HUB

Eclat EXILE front hub black 1 web

"The perfect partner to our Exile Cassette Hub, the eclat Exile Front Hub utilizes a super slim 6061-T6 alloy hub shell and precision steel bearings for a fast and light front wheel. With special knurled alloy cones, this is one classy front hub which sets itself apart from the crowd." - eclat

Material:
6061-T6 alloy refined hub-shell

Axle:
4130 crmo female axle. 3/8″ thread

Bearings
2 sealed high-quality bearings

Spokes:
36h

Colors
black, silver polished, bronze

Features:

• lightweight, high-performance trail/transition hub

• super slim hub shell

• hex key inner axle for easy maintenance

• cnc machined knurled flush bolt caps

• inc. 2nd set of 17mm hex bolts for peg use

Measurements:
PCD: 38mm, Flange offset 36mm

Weight:
302g / 10.2oz

MORE INFO

EXILE CASSETTE HUB

ECLAT EXILE CASSETTE HUB BLACK 9 low res

"When it came to designing an all-new hubset focused at trail/transition riders, we knew we wanted to do something outside the realms of comfort. Designed together with Tyson Jones’Peni, the eclat Exile Cassette Hub features a super lightweight 7075-T6 alloy 6 pawl multi-tooth driver with 120 points of engagement for uncompromised speed and power. With a deafening buzz, and disc brake ready, the Exile Cassette Hub is set to make waves in the woods and on the concrete." - eclat

Material:
6061-T6 alloy refined hub-shell

Axle:
4130 crmo female axle. 3/8″ thread / 14mm adaptors

Bearings
2 sealed high-quality bearings, x3 driver bearings

Driver
7075-T6 alloy, 9t (10t sold seperatly)

Spokes:
36h

Colors
black, silver polished, bronze

Features:

• lightweight, high-performance trail/transition hub

• super rapid engagement, 120 points

• 6 pawl multi-tooth weight saving 7075-T6 alloy driver

• durable and dependable 3-bearing system driver

• 10t driver available separately

• cnc machined knurled flush bolt caps

• inc. 17mm hex bolts and adaptors for 14mm dropouts

Measurements:

NDS PCD 49mm / DS PCD 58mm

Weight:
TBA

MORE INFO

EXILE CASSETTE HUB FOR DISC BRAKES

Eclat EXILE DISC CS hub 36 H black 101 web

"When it came to designing an all-new hubset focused at trail/transition riders, we knew we wanted to do something outside the realms of comfort. Designed together with Tyson Jones’Peni, the eclat Exile Cassette Hub features a super lightwight 7075-T6 alloy 6 pawl multi-tooth driver with 120 points of engagement for uncompromised speed and power.

With that much speed, we wanted to ensure you could slow down just as fast. Working with Tyson we wanted to create the perfect partner to his Wethepeople Chaos Machine frame which features a rear disc brake mount. By using a 6 bolt IS disc-mount on the hub, we were able to create one of the only 110mm disc brake BMX hubs on the market." - eclat

Material:
6061-T6 alloy refined hub-shell

Axle:
4130 crmo female axle. 3/8″ thread / 14mm adaptors

Bearings
2 sealed high-quality bearings, x3 driver bearings

Driver
7075-T6 alloy, 9t (10t sold seperatly)

Spokes:
36h

Colors
black, silver polished, bronze

Features:

• ISO x6 bolt disc brake mount option

• lightweight, high-performance trail/transition hub

• super rapid engagement, 120 points

• 6 pawl multi-tooth weight saving 7075-T6 alloy driver

• durable and dependable 3-bearing system driver

• 10t driver available separately

• cnc machined knurled flush bolt caps

• inc. 17mm hex bolts and adaptors for 14mm dropouts

Measurements:
Disc Hub – PCD 58mm

Weight:
TBA

MORE INFO
