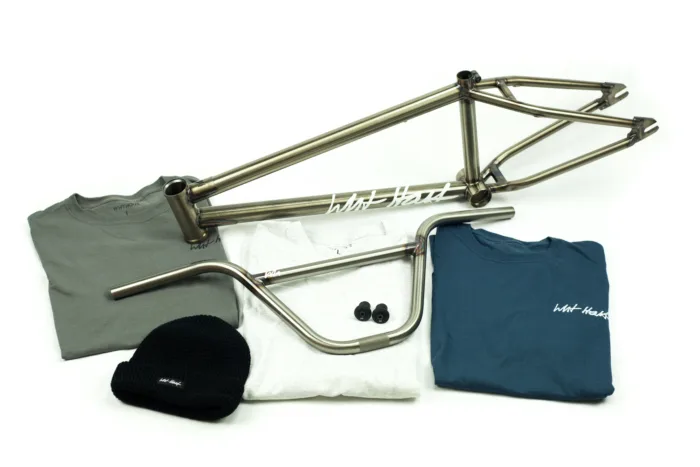

Regular communication with legendary frame builder John Corts at FBM, has resulted in the ever improving WHTHOUS 'Brick' Frame. On the larger frame models, the rear end is extended to 13.25" to give a more balanced feel.

• 20.75" 21" 21.25" 21.5" TT

• 75* HT

• 71* ST

• 11.75" BB HEIGHT

• 9" stand over

• 13.1" CS on 20.75 & 21 TT models

• 13.25" CS on 21.25 & 21.5 TT models

• 100% 4130 Chromoly

• 1/4" Thick laser cut & heat treated dropouts

• Integrated seat post clamp

• Integrated head tube with flush fit lower headset bearing. (Only compatible with forks that have a built in integrated headset race.)

• Internally machined Mid bb shell

• Removable brake mounts (Brake hardware sold separately)

• Laser cut WH top tube gusset

• Tapered seat stays & straight gauge chain stays

• Thicker wall top & down tubes for dent resistance

• Gloss raw & Translucent Black

• 5lbs 6oz

• Made in USA

• Built by FBM in Limited batches.

The WHTHOUS 'Mill' Bars are currently produced by S&M here in the USA. They run with a 7/8" diameter cross bar for a classic look and have had a good response from folks out there who are already riding them.

• 9.4" Rise

• 29" Wide

• 3* Up

• 12* Back

• 100% 4130 Chromoly

• 7/8” Cross bar

• Gloss black & Gloss raw

• Made in USA by S&M

• Anodized black with Laser etched WH logo

• 6061 Aluminum construction

• Fits handlebars with thicker walled tubing.

• Made in our machine shop in Helena, MT USA
