PRODUCTIVITY: WTP/ECLAT JACKAL FRAME & FORK

Did someone say titanium?!

13 Apr 2024

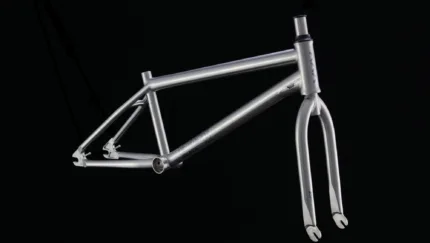

WTP ECLAT JACKAL FRAME FORK 3
wePeople eclat

Photos courtesy of Wethepeople / eclat

Remember back when people were drilling holes in their rims and cutting bits out of frames? The buzzword at the time was "titanium", but realistically no one was really taking that fad all that seriously, apart from park riders spending hundreds on titanium spokes. Fast forward to today, and the people over at Wethepeople and eclat seem like they may gone and figured it out, this time for a flatland frame and fork. Scroll down for more on their upcoming Jackal frame.

"What started as a casual conversation with our flatland team riders about basic frame/fork geometry, later exploded into a two-year quest to create a super lightweight and modern flatland frame and fork fully built from Titanium alloy. Hand crafted by one of the highest quality Titanium fabricators in the industry, the Wethepeople Jackal Frame is a contemporary flatland frame built to shed as much weight as possible without adversely affecting the durability. With Titanium being a vastly different material to Chromoly, we decided to take a more methodical approach and learn exactly how to use the material safely and wisely allowing us to keep all the weight benefits without sacrificing the overall rigidity and feel of the frame. Our first ever Titanium frame (so this one had to be done right) will be built to incredibly high tolerances and quality standards. Whilst there may be marginally lighter titanium flatland frames on the market, the Jackal Frame is in our eyes a step above and beyond the normal application of this special material in BMX and caters to the benefits and special properties the material naturally offers. We decided to go with a more progressive, modern frame geometry borrowed from our Utopia Hybrid frame, with strength and stiffness being a priority. The first run of frames will be available in both a 19” toptube and a 20” toptube, with no brake mounts for the first batch. Up to 35% lighter than an equivalent chromoly frame, whether you’re looking to ride an incredibly light and durable handmade BMX frame or simply own a masterpiece of a bike, the Jackal Frame is something truly special. To match the Jackal Frame we thought it was only fit to develop an all-new flatland-specific fork also made out of Grade 9 Ti-3A-2.5V Titanium tubing. Built to match the same quality, workmanship standards and tolerances as the Frame, the éclat Jackal Fork is a true work of art. Designed with heavy input from the éclat flatland team, we created a titanium fork which you can really trust your riding with. Much like the frame, rather than taking the thinnest/lightest tubing available, we wanted to craft a fork which really was worth the significant investment.The Jackal fork is up to 30% lighter than it’s chromoly counterpart, whilst still offering a super tough and dependable ride. Available in both a 0mm and 10mm offset version, whether you’re looking to ride the lightest setup possible or tune your bike to a whole new level, the éclat Jackal Fork is something truly special. The Wethepeople Jackal Frame and éclat Jackal Fork will be available separately and in very limited quantities later this Summer from Wethepeople and éclat dealers worldwide. For more information and to pre-order these products please contact your Wethepeople/eclatdealer of choice." - Wethepeople / eclat

JACKAL FORK

  • ECLAT JACKAL FORK 1
  • ECLAT JACKAL FORK 2
  • ECLAT JACKAL FORK 3
  • ECLAT JACKAL FORK 4
  • ECLAT JACKAL FORK 5
  • ECLAT JACKAL FORK 6
  • ECLAT JACKAL FORK 7
  • ECLAT JACKAL FORK 8
  • ECLAT JACKAL FORK 9
  • ECLAT JACKAL FORK 10
  • ECLAT JACKAL FORK 11
  • ECLAT JACKAL FORK 12
  • ECLAT JACKAL FORK 13
  • ECLAT JACKAL FORK 14
  • ECLAT JACKAL FORK 15

of 15

SPECS:

COLOUR: brushed titanium

TOP TUBE LENGTHS: 19", 20"

CHAIN STAY LENGTH: 12.7"-13.25" -optimized for 12.75"/ 13'' w/25-9

HEADTUBE ANGLE: 75.5°

SEAT TUBE ANGLE: 71.5°

BB HEIGHT: 11.9"

STANDOVER HEIGHT: 8.6"

TUBING: Grade 9 Ti-3A-2.5V Titanium tubing, butted and tapered

BOTTOM BRACKET: 74mm mid size, cnc machined

HEAD TUBE: 117mm cnc machined, integ. h/set

DROPOUTS: laser cut and cnc machined 8mm thick, for 14mm axle, integrated chaintensioners

BRAKES: brakeless frame

WEIGHT: 1.35kg (2.97lbs) -19” / 1.58kg (3.44lbs) -20"

• extremely lightweight frame designed exclusively for flatland riding

• highest grade 9 Ti-3A-2.5V Titanium tubing

• hand-crafted at one of the highest quality Titanium factories in the industry

• new-school flatland geometry developed with the Wethepeople flatland team

• taller 8.6" standover and 117mm head tube

• frame comes with 14mm slot dropouts with chain tensioner bolts

• oversize gusset

• Mid sized bottom bracket

• tapered seat stays and chain stays with longer tapers for foot clearance

• curved seat stay bridge and chain stay bridge

• wider rear triangle allows clearance for a 2.3" tire

• comes without seat clamp (fits 28.6mm ID seat clamp)

• covered against manufacturers defects

JACKAL FRAME

  • WTP JACKAL FRAME 1
  • WTP JACKAL FRAME 2
  • WTP JACKAL FRAME 3
  • WTP JACKAL FRAME 4
  • WTP JACKAL FRAME 5
  • WTP JACKAL FRAME 6
  • WTP JACKAL FRAME 7
  • WTP JACKAL FRAME 8
  • WTP JACKAL FRAME 9
  • WTP JACKAL FRAME 10
  • WTP JACKAL FRAME 11
  • WTP JACKAL FRAME 12
  • WTP JACKAL FRAME 13
  • WTP JACKAL FRAME 14

of 14

SPECS:

MATERIAL: Grade 9 Ti-3A-2.5V Titanium tubing

COLOUR: brushed titanium

MACHINING:

• fully cnc'd steerer and butted forkblades

• integrated crown race

•designed for integrated 45° headsets

STEERER TUBE: 170mm, for M18 top bolt

DROPOUTS:

• laser cut 5mm thick dropout

• 3/8" (10mm)

OFFSET: 0mm and 10mm

TOP BOLT: M18 thread, 6061-T6 alloy, includes recess for front brake cable

WEIGHT: 670g (23.6oz :1.47lbs) – 10mm / 660g (23.2oz : 1.45lbs) – 0mm

• extremely lightweight fork designed exclusively for flatland riding

• highest grade 9 Ti-3A-2.5V Titanium tubing

• hand-crafted at one of the highest quality Titanium factories in the industry

• new-school flatland geometry developed with the Wethepeople flatland team

• designed for narrower 1.75”-1.95” flatland tires

• fits 2.0” tires max

• slimmed down fork legs to reduce weight

• long taper for maximum foot/peg clearance

• 0 or 10mm offsets
