PRODUCTIVITY: Fly Bikes Frames & Parts 2021

Refined designs and eye catching colorways.

15 Dec 2020

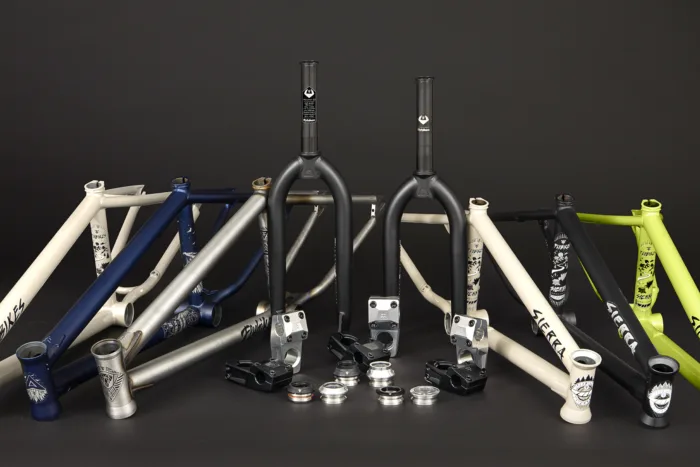

Fly 2021 Header

FLY BIKES are OFFICIAL DIG PARTNERS

You saw their complete bikes line a few weeks ago, now we've got their drop of 2021 frames and parts for your perusal. Needless to say, everything in the range stands up to FLY's legendary reputation for beautifully designed and crafted bike products. Read on...

"Every year we go into designing our frames and parts with the goal of producing the highest quality products that we can make, with refined designs and eye catching colors. Our 2021 frames and parts are a perfect example of just how dialed our entire range has become! We’ve introduced great new colors, along with some big additions to our 18” line and even revamped a few of our classic products to make them better than ever!" - FLY BIKES

Volcano 33 Fork

"This year we are releasing two new additions for the Volcano fork range. Sergio Layos, Sem Kok and Ruben Alcantara all asked for a longer offset version, so after testing different lengths, the 33mm. offset was the perfect choice! Since Sem & Larry runs smaller diameter CrMo pegs occasionally, we designed the dropouts on the Volcano 33 fork to be flush with the hub bolts. They are still suitable for CrMo pegs if you do decide to run pegs, though. The result is a really nice looking fork and hub set up, especially with the Magneto front hub cone bolts!" - MORE INFO

The Volcano fork comes in 30mm and 33mm offset options in Black only.

Specs:

Legs material: 4130 CrMo / Japanese Sanko Triple Butted

Dropouts material: Invest Casting / 4130 CrMo

Steer tube material: CNC machined / 4130 CrMo

Treatment: full post welding heat treated

Top bolt material: CNC machined / 7075 t6 Aluminum

Offset: 33 mm

Steer tube: length 165 mm

Weight black: 1.049g / 2.31 lb (top bolt included)

Volcano 33 Fork Drawing

Volcano 18” Fork

"Along with the new 33mm offset Volcano fork, we have added a new 18" version! With all these little shredders killing it these days, it was time to create the best fork that we can offer for the riders on 18" bikes. The Volcano 18" uses the same features as the 20" Volcano forks but with laser cut CrMo dropouts with a short 25mm offset." - MORE INFO

The Volcano 18" fork is available in Black only.

Specs:

Legs Material: 4130 CrMo / Japanese Sanko Triple Butted

Drop Outs: Invest Cast / 4130 CrMo

Steer Tube: CNC Machined / 4130 CrMo

Treatment: Full Post Welding Heat Treated

Top Bolt: CNC Machined / 7075 T6 Aluminum

Offset: 25 mm

Steer Tube Length: 155 mm

Weight: 900 grs / 2 Lb

Volcano 18 Fork Drawing

VOLCANO STEMS

For 2021, FLY have released three new and improved stem designs to give you even more options.

Volcano 25 Large

Volcano 25 Large Detail

"Stems have been shrinking in reach over the years, but sometimes you have to take a look back and remember what used to work great for certain kinds of riding and riders. That’s what Ruben Alcantara did when he asked us for a longer reach stem for trails riding. We have created the new Volcano 25L (Long) stem with a 57mm reach for riders who prefer that extra room out front and a 25mm rise. Available in Black and Polished colors!" - More Info

Volcano 25 Large Polish
Volcano 25 Large Stem Drawing

Volcano 35

Volcano 35 Detail

"We are always looking at our designs to refine our product line, and we found that our Volcano ST stem was a bit bulky, so we refined it with the new Volcano 35 model. This new slimmed down topload stem has a tall 35mm rise with a 48mm reach and the Anti-Slip grooves to keep your bars in place that is perfect for the streets. Available in Black and Polished colors!" - More Info

Volcano 35 Polish
Volcano 35 Stemdrawing

Volcano 25 Short

Volcano 25 Short Detail

"Much like our Volcano forks, we knew it was time to create a Volcano stem that was designed specifically with 18" bikes and smaller riders who prefer a shorter reach in mind The Volcano 25S (short) stem utilizes a 45mm reach with a 25mm rise making it perfect for smaller riders that need the bars closer to them. Available in Black and Polished colors!" - More Info

Volcano 25 Short Polish
Volcano 25 Short Stem Drawing

VOLCANO HEADSET

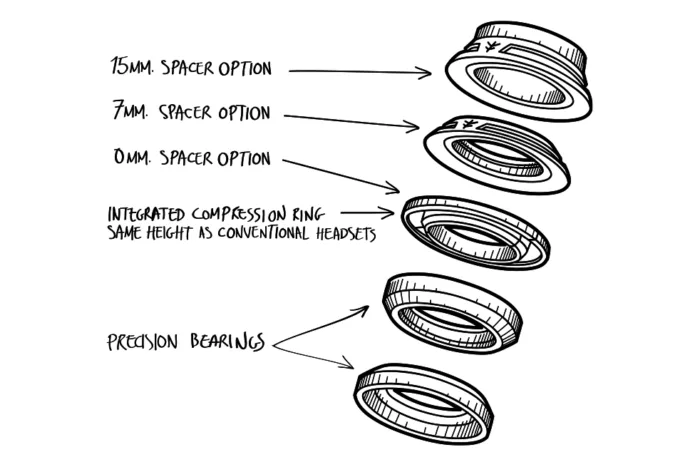

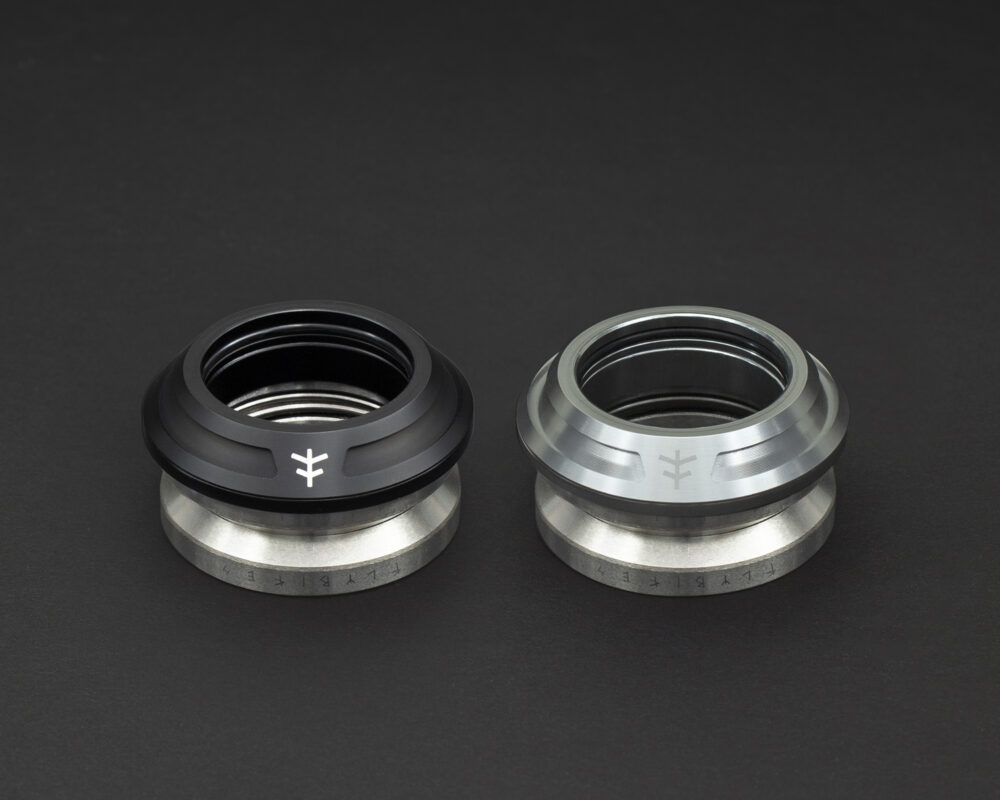

"With upgrades to our entire Volcano steering line, it was the perfect time to redesign our popular Rotar headset with some new and improved details. The integrated cap and wedge system has been updated with a double cut for better overall performance and a cleaner look. We have also released 3 different top cap sizes to help replace the spacers many riders use. We have brought back the super low version that we used to make that we are calling the Volcano 0 for riders who prefer no spacers, a mid level 7mm height with the Volcano 7 and a higher 15mm version with the Volcano 15 for riders who want to bring their stem and bars up higher. All three sizes are available in Black and Polished colors!" - More Info

Volcano Headset Drawing

SAVANNA FRAME - FLAT RAW

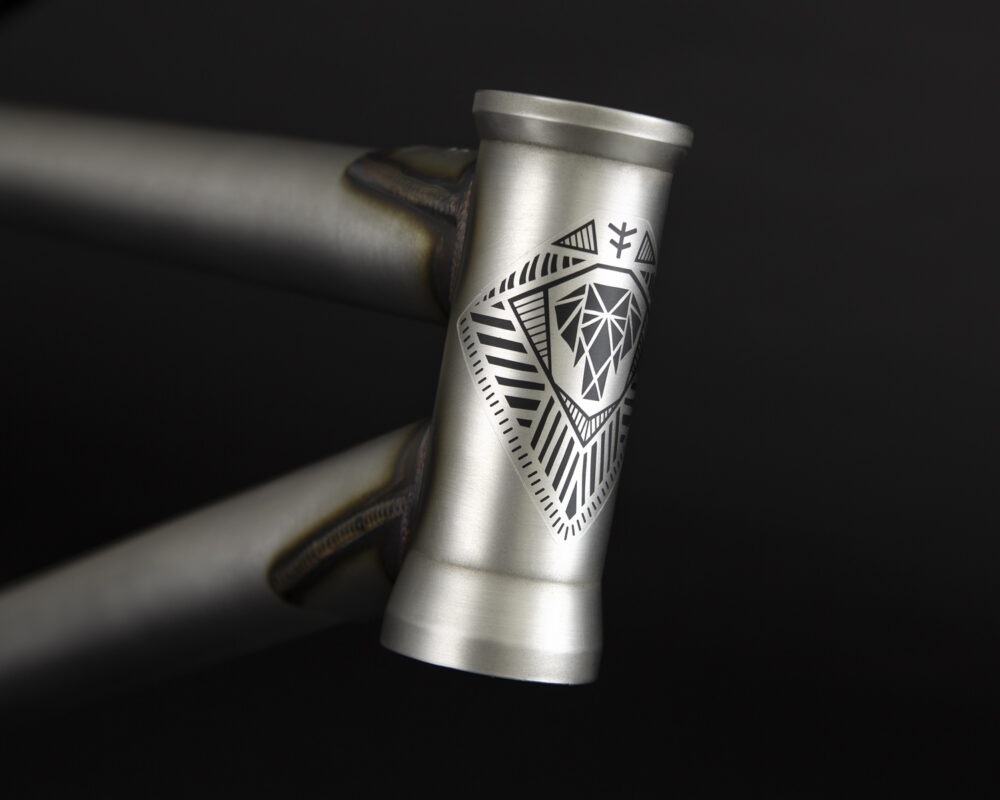

"Over the years we have dialed in the frame geometry on Courage Adams’ signature Savanna frame, so he decided not to make any changes to the geometry, but he did want to do this amazing new Flat Raw color that looks so good!" - More Info

Savanna Falt Raw 7

Specs:

Top Tube: 20.2”/ 20.6”/ 21”

Head Tube: 75.5º

Seat Tube: 71º

Rear End: 13”

Standover: 9.25”

Bottom Bracket Height: 11.75”

Head Tube Height: 113 mm / 4.45”

Brake System: Brakeless

Weight 21”: 2.400 Kg / 5.3 Lb

Tubing material: 4130 CrMo / Japanese Sanko Triple Butted

Headtube material: CNC machined / 4130 CrMo / heat treated

Bottom bracket material: CNC machined / 4130 CrMo / heat treated

Dropouts material: Invest casting / 4130 CrMo / heat treated

Seat clamp material: Invest casting / 4130 CrMo / heat treated

Available in Flat Raw, along with Metallic White and Gloss Black colors.

SIERRA FRAME - WARM GREY

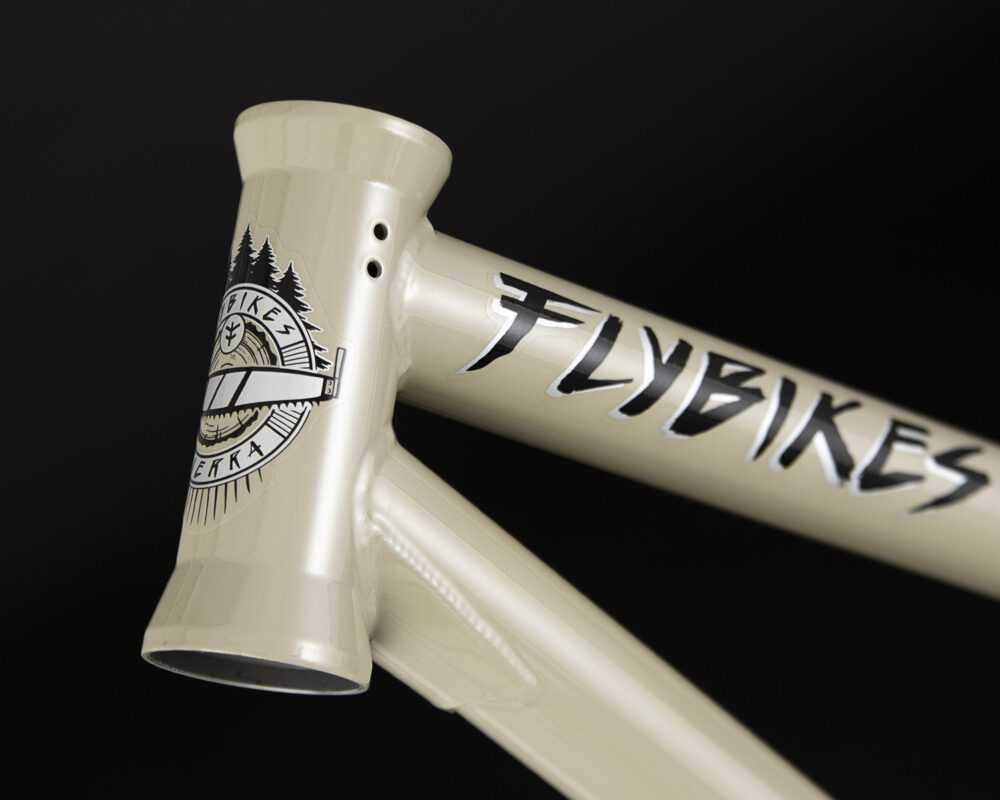

"One of the most fun parts of releasing new products is working on the colors. For this year, Sergio decided on this new Warm Grey color that looks so good built up! Much like the Savanna frame, Sergio has dialed in his Sierra frame to the point that he didn’t want to make any geometry changes to the frame!" - More Info

Sierra Warm Grey 6

Specs:

Top Tube: 20.6" / 21” / 21.4”

Head Tube: 75º

Seat Tube: 71º

Rear End: 13.6"

Standover: 8.75"

Bottom Bracket Height: 11.5"

HEAD TUBE LENGTH 113 mm / 4.45"

Brake System: EBS / Chainstays

Weight 21”: 2.200 Kg / 4.85 Lb

Tubing material: 4130 CrMo / Japanese Sanko Triple Butted

Headtube material: CNC machined / 4130 CrMo / heat treated

Bottom bracket material: CNC machined / 4130 CrMo / heat treated

Dropouts material: Invest casting / 4130 CrMo / heat treated

Seat clamp material: Invest casting / 4130 CrMo / heat treated

Available in Gloss Warm Grey, along with Forrest Green and Flat Black colors!

SIERRA 18” FRAME

"For 2021, we put a lot of focus on our 18” line of products. Since the release of our Nova and Supernova Complete Bikes, we’ve been completely blown away by the response, along with the level of progression we have seen from the younger generation. We knew there weren’t a ton of options for this size, and with kids going bigger than ever before, we wanted to do a frame we knew could handle that riding! We are excited to release the new Sierra 18” frame, utilizing the same look as Sergio’s personal frame, just scaled down to fit the smaller riders perfectly! Available in Gloss Warm Grey, Avocado Green and Flat Black!" - More Info

Sierra 18 6

Specs:

Top Tube: 18.7”

Head Tube: 75º

Seat Tube: 71º

Rear End: 12,2”

Standover: 8”

Bottom Bracket Height: 10.5”

Head Tube Height: 102 mm / 4”

Brake System: EBS / Chainstays

Weight: 2.060 kg / 4.5 Lb

Tubing material: 4130 CrMo / Japanese Sanko Triple Butted

Headtube material: CNC machined / 4130 CrMo / heat treated

Bottom bracket material: CNC machined / 4130 CrMo / heat treated

Dropouts material: Invest casting / 4130 CrMo / heat treated

Seat clamp material: Invest casting / 4130 CrMo / heat treated

AIRE FRAME - NIGHT BLUE

"When you ride like Larry Edgar does, you need a frame that is designed to blast, but also be able to handle the abuse that comes with it! The Aire frame has held up to Larry’s riding and has been dialed in exactly where he likes it! Available in this Night Blue color that looks absolutely amazing built up! We can’t say that you will go as high as Larry goes, but you’ll look good doing it!" - More Info

Aire Frame 5

Specs:

Head tube 74.5º

Seat tube 71º

Rear end 13.8"

Standover 9.25"

Bottom bracket height 11.50"

Top tube 21" / 21.8"

Head tube height 113 mm / 4.45"

Brake system ebs / Seatstays

Weight 21" 2.480 Kg / 5.47 lb

Tubing material: 4130 CrMo / Japanese Sanko Triple Butted

Headtube material: CNC machined / 4130 CrMo / heat treated

Bottom bracket material: CNC machined / 4130 CrMo / heat treated

Dropouts material: Invest casting / 4130 CrMo / heat treated

Seat clamp material: Invest casting / 4130 CrMo / heat treated

Available in Night Blue and Gloss Black colors!

Fly 2021 Header

FOR MORE INFO CHECK OUT flybikes.com or ask for them at any of our DIG PARTNER STORES worldwide.
